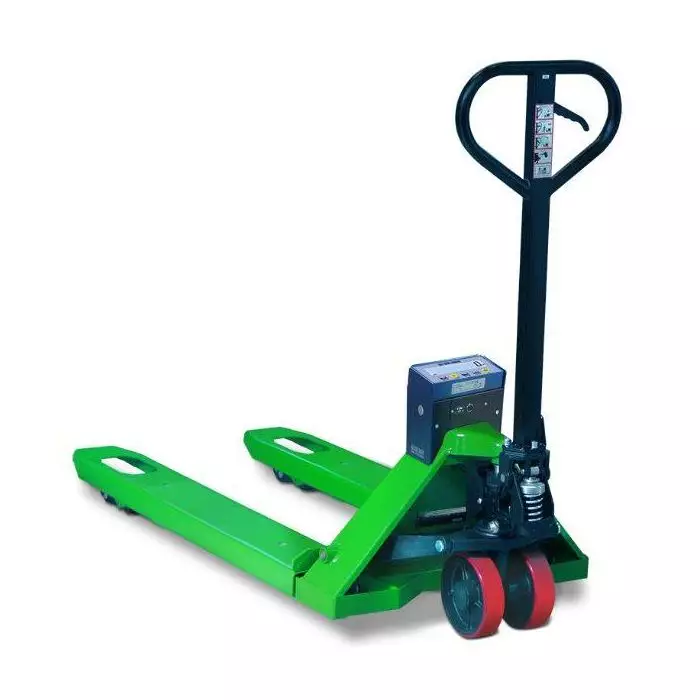

NETWORK ENTRY LEVEL PALLET TRUCK SCALE - LTTPWN RANGE
The L-TTPWN Network Entry Level Pallet Truck Scale is a practical 2000KG capacity weighing pallet truck designed for fast, accurate pallet weighing in warehouses, logistics operations and industrial environments. Available with standard 1150 x 550mm forks or wider 1240 x 680mm forks, the range combines precise weighing performance with a lightweight, easy-to-use design.
Four IP67 steel load cells provide reliable weighing performance, while the junction-box-free design allows individual load cell adjustment directly through the display for easier calibration and servicing. A clear 25mm backlit LCD, rechargeable battery with approximately 80 hours runtime and polyurethane wheels make the L-TTPWN well suited to regular workplace use.
2000KG pallet truck scale with four IP67 load cells, backlit LCD display, up to 80-hour battery runtime and standard or wide fork options – ideal for warehouse weighing, goods checking, dispatch, logistics and stock control.
Network Entry Level Pallet Truck Scale – L-TTPWN Range
The L-TTPWN Network Pallet Truck Scale combines high-precision weighing with a robust, lightweight design, making it the ideal solution for fast and accurate pallet handling. Designed and calibrated in Italy using certified weights, this model delivers reliable performance for warehouses, logistics operations and industrial environments.
With advanced load cell technology, simple on-board calibration and no junction box, the L-TTPWN offers one of the most user-friendly and serviceable pallet truck scales on the market.
Key Features
- 2000KG Capacity – Suitable for most pallet weighing applications
- High Accuracy Weighing – 0.2KG resolution (1KG wide fork version)
- Made & Calibrated in Italy – Certified accuracy using test weights
- No Junction Box Design – Direct load cell adjustment via display
- 4 IP67 Load Cells – Reliable, long-lasting weighing performance
- Lightweight Construction – One of the lightest pallet truck scales available
- Low Profile Forks – Only 85mm for easy pallet entry
- Polyurethane Wheels – Smooth and quiet operation
Why Choose the L-TTPWN?
Many pallet truck scales can be complex to maintain and difficult to recalibrate. The L-TTPWN is designed to simplify both operation and servicing, making it a practical and cost-effective choice for everyday use.
- Adjust each load cell directly from the display
- No junction box reduces faults and downtime
- Fast and accurate weighing for busy operations
- Easy to use with minimal training required
Accurate & Reliable Weighing
Equipped with four high-quality IP67-rated steel load cells, this pallet truck scale ensures consistent and precise weighing across evenly distributed loads.
- Accuracy: ±1KG on standard pallet loads
- Resolution: 0.2KG (standard) / 1KG (wide version)
- Ideal for inventory control, dispatch and goods checking
Clear Display & Simple Controls
The large 25mm backlit LCD display ensures excellent visibility in all lighting conditions, while the waterproof 5-key keyboard provides reliable operation in industrial environments.
- Backlit display with auto switch-off
- Waterproof keyboard with protective cover
- Simple, intuitive operation
Advanced Weighing Functions
- Zeroing and tare functions
- Preset tare
- Weight totalisation
- Piece counting
- Hold function
- Unit conversion (kg/lb)
Flexible Power Options
The L-TTPWN is powered by a rechargeable battery with up to 80 hours of runtime, ensuring long working periods without interruption.
- Internal rechargeable battery (approx. 80 hours)
- Battery charger included
- Automatic power-off to extend battery life
Technical Specification
| Capacity | 2000 KG |
| Resolution | 0.2 KG (Standard) / 1 KG (Wide) |
| Fork Size | 1150 x 550 mm / 1240 x 680 mm |
| Lowered Height | 85 mm |
| Lift Height | 200 mm |
| Weight | Approx. 105 KG |
| Load Cells | 4 x IP67 Steel |
| Display | 25mm Backlit LCD |
| Protection | IP40 (IP54 with cover) |
| Wheels | Polyurethane |
| Temperature Range | -10°C to +40°C |
Available Models
- TPWNBT-11 – Standard forks, 0.2KG resolution
- TPWNBTW-2 – Wide forks, 1KG resolution (ideal for produce handling)
Typical Applications
- Warehouse goods checking and dispatch
- Logistics and transport operations
- Food and produce handling (wide fork version)
- Industrial weighing applications
- Retail and stock control
A Smarter Pallet Truck Scale
The L-TTPWN offers the perfect balance between precision, simplicity and durability. If you need accurate pallet weighing without the complexity of high-end systems, this model delivers reliable results with minimal maintenance.
Order Now
Improve your weighing accuracy and streamline your operations with the L-TTPWN pallet truck scale.
Call: 0800 458 8025
Email: info@liftruck.co.uk
