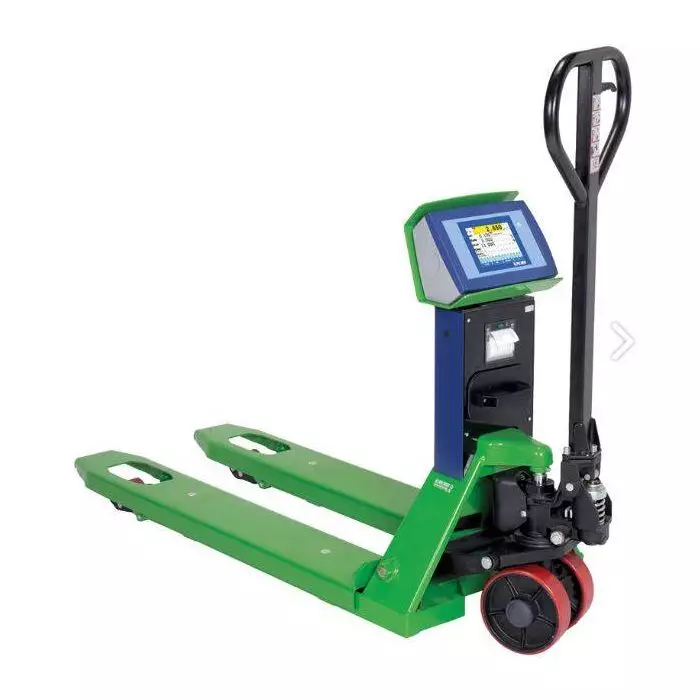

PALLET TRUCK SCALE WITH TOUCH SCREEN INTERFACE - LTTPWTS
The L-TTPWTS Touch Screen Pallet Truck Scale is a premium 2000KG weighing pallet truck designed for businesses requiring accurate weighing, advanced data management and integration with warehouse or business systems. A fully programmable colour touch screen provides customisable workflows, while the integrated thermal printer enables immediate recording and traceability of weighing data.
Four IP68 stainless steel load cells provide precise weighing performance, with 0.2KG internal resolution and approved versions available. Advanced connectivity options include dual RS232 ports, optional Wi-Fi, barcode scanner integration and wireless communication, while the extractable Instaplug rechargeable battery provides approximately 10 hours of operation.
2000KG touch screen pallet truck scale with integrated printer, four IP68 stainless steel load cells, advanced connectivity and programmable data management – ideal for warehouse system integration, logistics, manufacturing, batching and traceable industrial weighing applications.
Pallet Truck Scale with Touch Screen Interface – L-TTPWTS
The L-TTPWTS Touch Screen Pallet Truck Scale is a high-end weighing solution designed for advanced data management, system integration and fully customised workflows. Featuring a colour touch screen interface, integrated printer and wide connectivity options, this model allows seamless communication with business systems while delivering precise and reliable weighing performance.
Manufactured and calibrated in Italy using certified test weights, the L-TTPWTS is ideal for operations where data accuracy, traceability and process control are critical.
Key Features
- 2000KG Capacity – Suitable for industrial and logistics applications
- Touch Screen Interface – Fully programmable display for custom workflows
- Integrated Thermal Printer – Print weight data with date, time and identifiers
- Advanced Connectivity – Compatible with Wi-Fi, barcode scanners and IT systems
- High Precision Weighing – 0.2KG resolution (0.5–1KG approved)
- 4 IP68 Stainless Steel Load Cells – Maximum durability and accuracy
- Instaplug Battery System – Extractable battery with approx. 10-hour runtime
- Made & Calibrated in Italy – Certified performance and reliability
Designed for System Integration & Data Management
The L-TTPWTS is not just a pallet truck scale — it is a fully integrated data management tool. Designed to communicate directly with company systems, it allows operators to capture, process and transfer weighing data in real time.
- Integrates with warehouse management systems
- Supports barcode scanning and product identification
- Enables real-time data processing and reporting
- Customisable interface for specific applications
Customisable Touch Screen Interface
The colour touchscreen display allows you to create tailored workflows for your operation, improving efficiency and reducing operator error.
- Design custom screens and processes
- Guided workflows for operators
- Custom data entry fields and prompts
- Visual interface for faster operation
High Precision Weighing Performance
With four IP68 stainless steel load cells and advanced calibration options, the L-TTPWTS delivers accurate and repeatable weighing results for demanding applications.
- Accuracy: ±0.5KG (internal use)
- Legal-for-trade certified versions available
- Optional high resolution down to 0.1KG
Integrated Printing & Traceability
The built-in thermal printer allows for immediate documentation of weighing operations, including full traceability with date, time and custom identifiers.
- Print labels or tickets instantly
- Customisable print layouts
- Supports audit and compliance requirements
Advanced Connectivity Options
Designed for modern operations, the L-TTPWTS offers a wide range of communication interfaces for seamless integration into your existing systems.
- Dual RS232 communication ports
- Optional Wi-Fi connectivity
- Barcode scanner integration
- WPAN and wireless communication options
Advanced Operational Functions
- Weight totalisation and batching
- Piece counting and formulation
- Net/Gross weighing
- Percentage weighing
- Custom data storage and archives
- Automated workflows and process control
Easy to Maintain & Service
Designed without a junction box, each load cell can be adjusted directly from the system, simplifying recalibration and reducing maintenance downtime.
- Quick recalibration via interface
- Reduced servicing complexity
- Spare parts readily available
Technical Specification
| Capacity | 2000 KG |
| Resolution | 0.2 KG (internal) / 0.5–1 KG (approved) |
| Fork Size | 1150 x 550 mm |
| Lowered Height | 85 mm |
| Lift Height | 200 mm |
| Weight | Approx. 116 KG |
| Load Cells | 4 x IP68 Stainless Steel |
| Display | Colour Touch Screen (Swivel Head) |
| Protection | IP65 |
| Battery | Instaplug Rechargeable (~10 hours) |
| Wheels | Polyurethane |
Typical Applications
- Warehouse management system integration
- Logistics and distribution centres
- Manufacturing and production lines
- Batch processing and formulation tasks
- Retail and e-commerce fulfilment
Why Choose the Touch Screen Series?
The L-TTPWTS is designed for businesses that require full control over their weighing processes. With advanced data handling, system integration and custom workflow capabilities, it offers a complete solution for modern operations.
Order Now
Upgrade your operation with a fully integrated pallet truck scale designed for precision, control and efficiency.
Call: 0800 458 8025
Email: info@liftruck.co.uk
Frequently Asked Questions
General Product Information
-
What is the maximum lifting capacity of the Pallet Truck Scale with Touch Screen Interface?
- The maximum lifting capacity is 2,000 kg.
-
What is the resolution of the weighing scale?
- For internal use, the resolution is 0.2 kg; for approved versions, it is 0.5 kg or 1 kg.
-
What is the accuracy when weighing goods on a Euro pallet with a distributed load?
- For internal use, the accuracy is ±0.5 kg; for approved versions, it complies with CE certification (Directive 2014/31/EU).
-
What are the dimensions of the forks?
- The forks measure 1,150 x 550 x 85 mm. A wide fork version is available upon request.
-
What is the lifting height of the pallet truck?
- The lifting height is 200 mm.
-
What is the weight of the pallet truck?
- The pallet truck weighs approximately 116 kg without packaging.
-
What is the construction material of the pallet truck?
- It features an extra-thick steel structure with oven-fired paint.
-
What is the protection rating of the pallet truck?
- The protection rating is IP65, except for the printer area.
-
What type of wheels does the pallet truck have?
- It is equipped with polyurethane-coated steering wheels and loading rollers.
-
What is the operating temperature range?
- The operating temperature range is -10°C to +40°C.
Usage and Operation
-
How do I operate the Pallet Truck Scale with Touch Screen Interface?
- Position the forks under the pallet, use the handle to pump and raise the load, and maneuver as needed. The handle also controls lowering via a release valve.
-
Is the handle ergonomic for prolonged use?
- Yes, it includes a heavy-duty handle designed for comfortable and efficient operation.
-
Can this pallet truck be used on uneven surfaces?
- While it performs best on smooth surfaces, its robust wheels allow limited use on slightly uneven terrain.
Maintenance and Care
-
What maintenance is required for the Pallet Truck Scale with Touch Screen Interface?
- Regular maintenance includes checking the hydraulic system for leaks, lubricating moving parts, and inspecting wheels for wear and tear.
-
What is the warranty for this product?
- The pallet truck comes with a 12-month warranty covering manufacturing defects.
-
Are replacement parts available?
- Yes, replacement parts like wheels and hydraulic components are available through our store.
Purchasing and Delivery
-
Do you offer bulk discounts for multiple units?
- Yes, we provide competitive pricing for bulk orders. Please contact our sales team for a personalized quote.
-
How long does delivery take?
- Standard delivery times are 3-5 business days.
-
Can I return the pallet truck if it doesn’t meet my needs?
- Yes, we have a 30-day return policy. The product must be in its original condition and packaging.
Safety and Regulations
-
Is the Pallet Truck Scale with Touch Screen Interface compliant with safety standards?
- Yes, it meets all relevant UK and EU safety regulations.
-
Are safety guidelines included with the product?
- Yes, a user manual with safety and operational guidelines is included in the packaging.
