PROFESSIONAL SERIES PALLET TRUCK SCALE - LTGTPWA
Professional pallet truck scale, ideal to obtain the maximum weighing resolution. Available in approved version for legal-for-trade use and with printer, for tracing the weighing operations. Manufactured, calibrated and adjusted in Italy by Dini Argeo, with the use of certified sample weights.

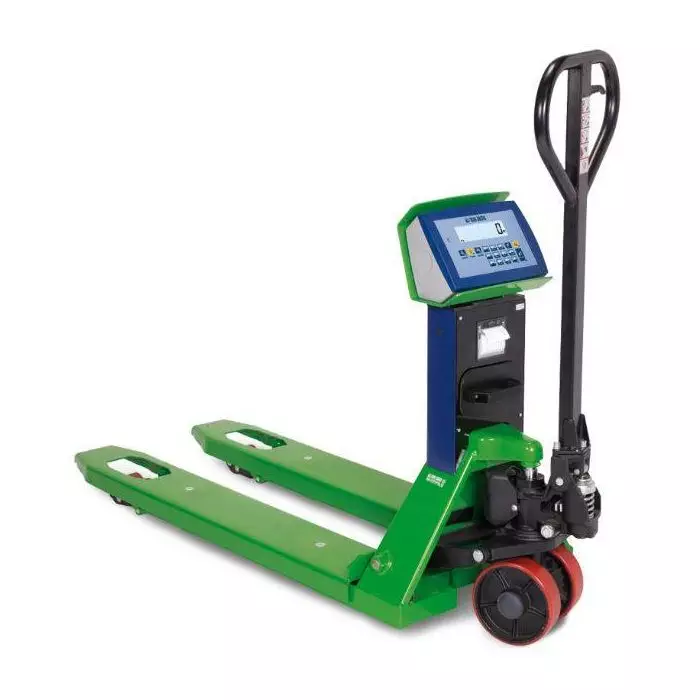

Professional Series Pallet Truck Scale – L‑TGTPWA
The L‑TGTPWA from the Dini Argeo Professional Series delivers industry-leading weighing precision built into a rugged pallet truck. Designed for legal-for-trade use, it's ideal for operations requiring high accuracy, traceable weighing, and long-term reliability.
Technical Specifications
| Model | L‑TGTPWA (Professional Series) |
| Max Capacity | Up to 2,000 kg |
| Resolution | 0.2 kg (internal), 0.5 kg (approved use) |
| Fork Dimensions | 1,150 × 550 × 85 mm (wide fork option available) |
| Lifting Height | 200 mm |
| Weight (Net) | ~116 kg |
| Construction | Extra-thick steel, oven-finish paint |
| Protection Rating | IP65 (printer area excluded) |
| Load Cells | 4 × stainless steel shear-beam load cells |
| Indicator & Keyboard | Large LCD display with 5-key waterproof keyboard |
| Calibration | Via keyboard—no junction box needed |
| Batteries & Charger | Extractable rechargeable battery (~60 h runtime) and fast charger included |
| Printer & Memory | Optional thermal printer (clock/calendar), Alibi memory |
| Connectivity | RS‑232C port for printer/PC integration |
| Operating Temp | –10 °C to +40 °C |
Key Features
- Easiest calibration in class: Individually adjustable load cells via keyboard without need for a junction box
- Legal-for-trade accuracy: Internal resolution of 0.2 kg and approved accuracy to 0.5 kg
- Robust durability: Heavy-duty steel frame, IP65 protection, and polyurethane wheels ensure longevity in tough conditions
- Long battery life: Highly efficient “Instaplug” battery offers around 60 hours of operation, with fast recharging
- Traceable documentation: Optional printer, Alibi memory, and programmable outputs support fleet validation and records
Typical Applications
- Warehousing and dispatch: accurate, trade-compliant pallet weighing
- Logistics & food operations: rugged enough for diverse environments
- E-commerce and retail: fast, traceable batch and weight recording
- Heavy-duty industrial zones: scaled to 2,000 kg capacity for large-scale lifts
Related Products
Explore other Dini Argeo pallet truck scales: - **L‑TTPWN** (network entry-level model) - **L‑TTPWTS** (touchscreen version) - **TPW I-Pro** (stainless steel) for chemical or wash-down zones.
Order Now
Call 0800 458 8025 or email info@liftruck.co.uk for stock availability, quotes, or fleet ordering. Nationwide UK delivery and calibration services available.
requently Asked Questions
General Product Information
-
What is the maximum lifting capacity of the Professional Series Pallet Truck Scale?
- The maximum lifting capacity is 2,000 kg.
-
What is the resolution of the weighing scale?
- The resolution is 0.2 kg for internal use and 0.5 kg for approved versions.
-
What is the accuracy when weighing goods on a Euro pallet with a distributed load?
- The accuracy is ±0.5 kg for internal use and complies with CE certification (Directive 2014/31/EU) for approved versions.
-
What are the dimensions of the forks?
- The forks measure 1,150 x 550 x 85 mm. A wide fork version is available upon request.
-
What is the lifting height of the pallet truck?
- The lifting height is 200 mm.
-
What is the weight of the pallet truck?
- The pallet truck weighs approximately 116 kg without packaging.
-
What is the construction material of the pallet truck?
- It features an extra-thick steel structure with oven-fired paint.
-
What is the protection rating of the pallet truck?
- The protection rating is IP65, except for the printer area.
-
What type of wheels does the pallet truck have?
- It is equipped with polyurethane-coated guide wheels and loading rollers.
-
What is the operating temperature range?
- The operating temperature range is -10°C to +40°C.
Usage and Operation
-
How do I operate the Professional Series Pallet Truck Scale?
- Position the forks under the pallet, use the handle to pump and raise the load, and maneuver as needed. The handle also controls lowering via a release valve.
-
Is the handle ergonomic for prolonged use?
- Yes, it includes a heavy-duty handle designed for comfortable and efficient operation.
-
Can this pallet truck be used on uneven surfaces?
- While it performs best on smooth surfaces, its robust wheels allow limited use on slightly uneven terrain.
Maintenance and Care
-
What maintenance is required for the Professional Series Pallet Truck Scale?
- Regular maintenance includes checking the hydraulic system for leaks, lubricating moving parts, and inspecting wheels for wear and tear.
-
What is the warranty for this product?
- The pallet truck comes with a 12-month warranty covering manufacturing defects.
-
Are replacement parts available?
- Yes, replacement parts like wheels and hydraulic components are available through our store.
Purchasing and Delivery
-
Do you offer bulk discounts for multiple units?
- Yes, we provide competitive pricing for bulk orders. Please contact our sales team for a personalized quote.
-
How long does delivery take?
- Standard delivery times are 3-5 business days.
-
Can I return the pallet truck if it doesn’t meet my needs?
- Yes, we have a 30-day return policy. The product must be in its original condition and packaging.
Safety and Regulations
-
Is the Professional Series Pallet Truck Scale compliant with safety standards?
- Yes, it meets all relevant UK and EU safety regulations.
-
Are safety guidelines included with the product?
- Yes, a user manual with safety and operational guidelines is included in the packaging.
